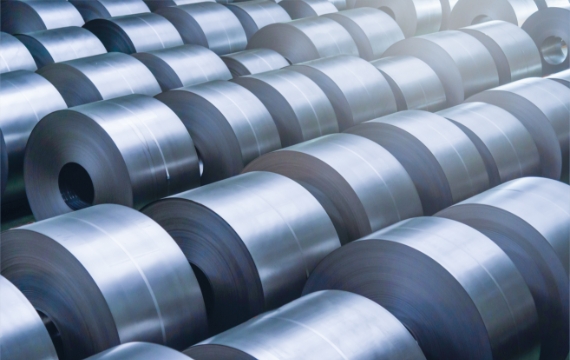

Carbon cold rolled steel coils and strips are produced with a highly adaptable manufacturing process, which are extensively used in automobile, washing machines, refrigerators, electrical appliances and steel office equipment. By varying the percentage in carbon steel, it is possible to produce steel with a variety of different qualities. In general, higher carbon content in steel makes steel harder, brittler and less ductile.
Cold drawn iron wire coils/strips/sheets
Description
Carbon steel is characterized by high hardness and corrosion resistance.
It is an alloy of iron and carbon. The percentage of carbon affects its hardness, ductility, and flexibility. The higher the carbon content in the alloy, the harder it is and the lower its flexibility. It is characterized by its hardness and strength, and is also inexpensive compared to other types of iron.
Mechanical Properties
Steel Grade SS400
Product Specification and Size :
Product Specification and Steel Grade
| Application | JIS | ASTM | SAE |
| Commercial Quality | G3141 SPCC | A1008 CS Type A, B, C | 1008~1012 CQ |
| Drawing Quality | G3141 SPCD | A1008 DS Type A, B | 1006~1008 DQ |
| Deep Drawing Quality | G3141 SPCE (N) | A1008 DDS | 1006 DDQ |
Available Size
| Thickness (mm) | Width (mm) | Coil Inside Diameter (mm) |
|
| Coil | 0.30~0.34 0.35~0.39 0.40~0.49 0.50~0.59 0.60~0.69 0.70~2.00 2.01~3.20 |
850~1100 850~1219 850~1400 850~1525 850~1575 850~1650 850~1260 |
506 or 610 |
| Strip | 0.30~3.20 | 7~850 |
| Thickness (mm) | Cut Edge Width (mm) |
Length(mm) | |
| Sheet | 0.30~3.20 | 50~1500 | 50~5800 |
Application
Carbon cold rolled steel coils and strips are produced with a highly adaptable manufacturing process, which are extensively used in automobile, washing machines, refrigerators, electrical appliances and steel office equipment. By varying the percentage in carbon steel, it is possible to produce steel with a variety of different qualities. In general, higher carbon content in steel makes steel harder, brittler and less ductile.
